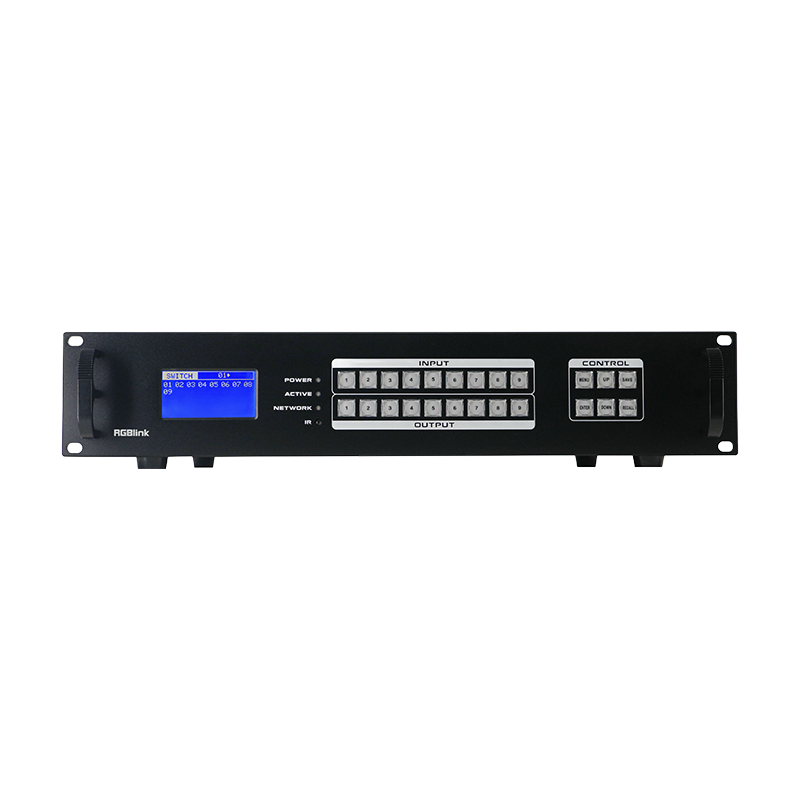

FLEX MINI
Modular matrix switcher with a one-card, one-port architecture for routing mixed video signals (DVI, HDMI, DP, HDBaseT, 3G-SDI) with embedded audio handling. Aimed at conference rooms, broadcast projects, large-screen displays and command centres.
- 1-card 1-port fully modular architecture
- Seamless switching with 4K60 RGB/YUV 4:4:4 in and out
- EDID and HDCP 2.2 support
- Dual network and dual power module backup
- Control via buttons, web, app and RS232; up to 254 devices
- 40 presets; 3.5 mm embedded audio in and out
Kuvat
8Ilmoitukset
Tästä mallista ei vielä ole ilmoituksia
Kun joku myy mallin FLEX MINI, ilmoitukset ja myyntihistoria näkyvät täällä.
Myy samanlainenKuvaus

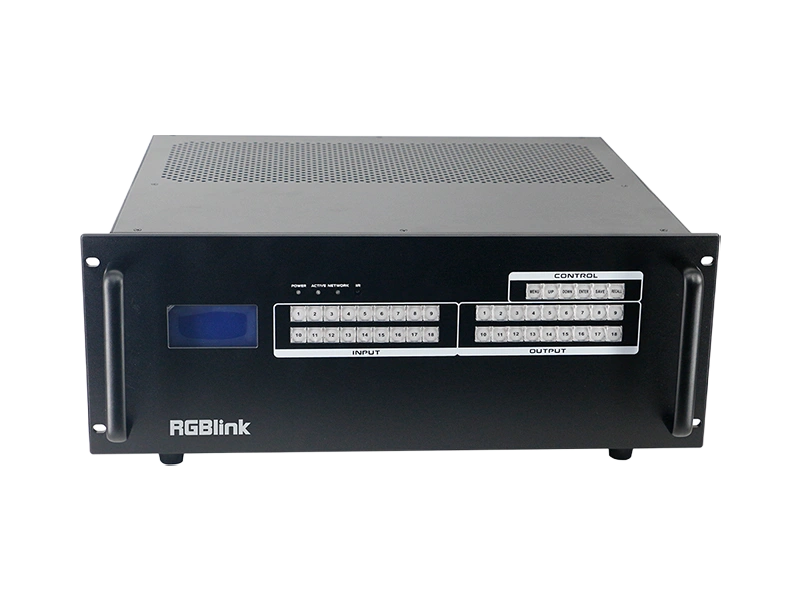

FLEX MINI is a modular matrix switcher that routes video and handles audio de-embedding, transmission, distribution and switching. Each input and output card carries a single port, so a system can mix signal types on both the input and output side, including DVI, HDMI, DP, HDBaseT and 3G-SDI. Three frame sizes are offered: FLEX 9, FLEX 18 and FLEX 36.
Switching is seamless, with RGB/YUV 4:4:4 and 4K60 supported on inputs and outputs, along with EDID and HDCP 2.2. Up to 40 presets can be saved and loaded, and settings are stored automatically at power-off and restored at start-up. Audio can be embedded and de-embedded through 3.5 mm audio jacks.
For reliability the unit supports dual network connections and dual power modules, each with backup. Control is via front-panel crystal buttons, a web interface, an app or RS232, and cross-platform centralised control can cover up to 254 devices. Typical uses include conferencing, television teaching, multimedia halls and radio and television projects.
Tekniset tiedot
- Merkki
- RGBlink
- Malli
- FLEX MINI
- Luokka
- Studio › Muut studiolaitteet
Inputs
- Input signal types
- CVBS/YPbPr/HDMI/DP/DVI/SDI/HDBaseT
- Input card format
- 1-card 1-port
- Supported formats
- RGB/YUV 4:4:4, 4K60
- Audio input
- 3.5mm audio jack (embedding)
Outputs
- Output signal types
- DVI, HDMI, DP, HDBaseT, 3G-SDI
- Output card format
- 1-card 1-port
- Supported formats
- RGB/YUV 4:4:4, 4K60
- Audio output
- 3.5mm audio jack (de-embedding)
Video
- Switching
- Seamless
- EDID
- Supported
- HDCP
- HDCP 2.2
- Mixed signals
- Mixed signal inputs and outputs
Control
- Control methods
- Crystal button, Web, APP, RS232
- Centralized control
- Up to 254 devices, cross-platform
- Presets
- Save and load up to 40
- Power-off memory
- Auto-storing and auto-restoring on boot
Connectivity
- Network
- Dual network with backup
Power
- Power modules
- Dual power modules with backup
Physical
- Models
- FLEX 9 (MINI), FLEX 18 (MINI), FLEX 36 (MINI)
- Architecture
- Fully modular
