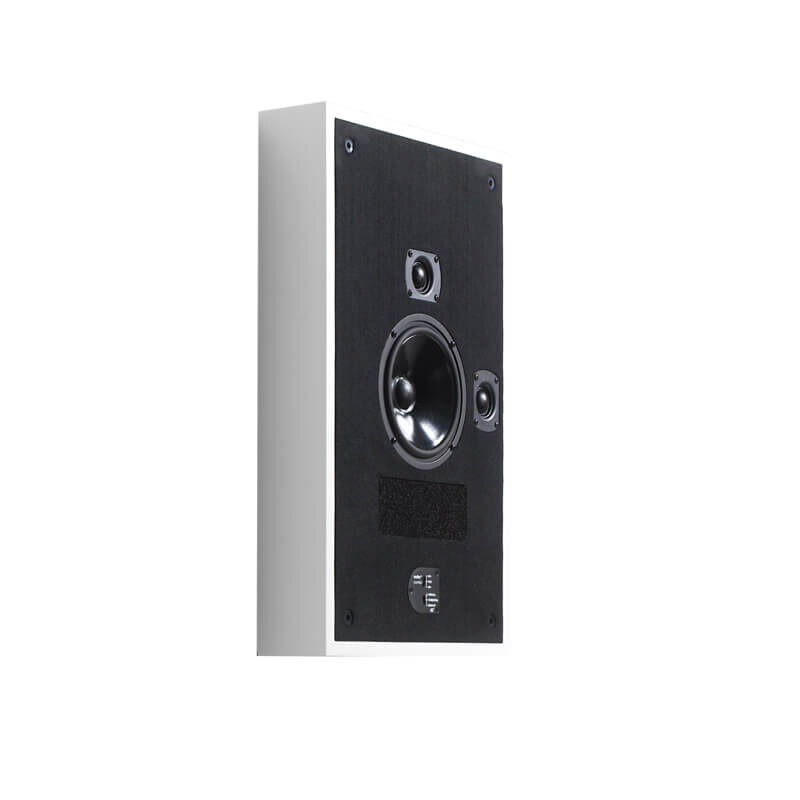

wafer2
The wafer2 is a slim on-wall loudspeaker from PMC's wafer series, a slightly taller and wider version of the wafer1 with a larger bass unit. It suits stereo and surround setups in a wide range of rooms, including professional monitoring use.
- Slim on-wall passive loudspeaker
- 170mm bass unit with 2 x 27mm soft-dome tweeters
- Frequency response 40Hz-25kHz
- Sensitivity 90dB (1w, 1m), 8 ohm impedance
- Suitable for stereo and surround use
- 20-year warranty with registration within 10 days
Kuvat
5Ilmoitukset
Tästä mallista ei vielä ole ilmoituksia
Kun joku myy mallin wafer2, ilmoitukset ja myyntihistoria näkyvät täällä.
Myy samanlainenKuvaus
The wafer2 is a passive on-wall loudspeaker that keeps the ultra-slim cabinet depth of the wafer1 while growing a little in height and width. The extra volume allows a larger bass driver, which gives deeper low-frequency extension and the ability to play louder than the smaller model.
It uses a 170mm (6.5") bass unit with two 27mm soft-dome high-frequency drivers. The design draws on TT Technology, Stealth Baffle and H-Line ATL, with PMC's Advanced Transmission Line bass loading used in place of a ported or sealed box. Sensitivity is 90dB (1w, 1m) and the recommended amplifier power is 10-200W into 8 ohms.
Connection is by a single pair of 4mm sockets. The speaker is suited to both stereo and surround configurations, and is listed as used in several BBC studio and dubbing suites. A 20-year warranty applies when the product is registered within 10 days of purchase.
Tekniset tiedot
- Merkki
- PMC
- Malli
- wafer2
- Luokka
- Hi-Fi ja kodin audio › Kaiuttimet
Audio
- Frequency response
- 40Hz-25kHz
- Sensitivity
- 90dB 1w 1m
- Impedance
- 8 Ohms
- Recommended amp power
- 10 - 200W
- Bass loading
- Advanced Transmission Line (ATL)
Drive units
- LF
- 170mm (6½")
- HF
- 2 x 27mm soft dome
Connectivity
- Input connectors
- 1 pair 4mm sockets
Physical
- Height
- 575mm (22.6")
- Width
- 355mm (14")
- Depth
- 100mm (3.9")
- Weight
- 6.6kg (14.5 lbs)
- Mounting
- On-wall
Technology
- Technologies
- TT Technology, Stealth Baffle, H-Line ATL
Warranty
- Extended warranty
- 20 years when registered within 10 days of purchase
