IB2 SE

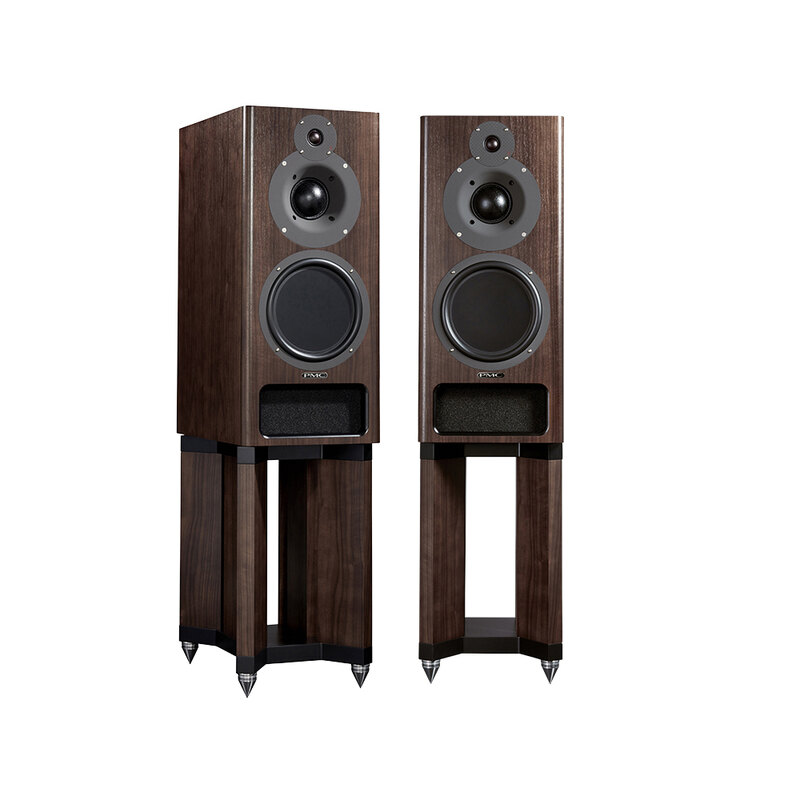

The IB2 SE is a large three-way floorstanding loudspeaker with a 10-inch carbon fibre and Nomex piston bass driver, a 75mm mid-range dome and a 27mm tweeter in an Advanced Transmission Line cabinet. It suits home listeners who want a studio-derived design and room for substantial amplifier power.
- Three-way passive floorstanding speaker
- 10-inch carbon fibre and Nomex piston bass driver
- Advanced Transmission Line bass loading, 2.4m effective length
- Frequency response 25Hz-25kHz, sensitivity 89dB
- 3 pairs of 4mm sockets for tri-wire or tri-amp use
- 20 year warranty if registered within 10 days
Kuvat
5Ilmoitukset
Tästä mallista ei vielä ole ilmoituksia
Kun joku myy mallin IB2 SE, ilmoitukset ja myyntihistoria näkyvät täällä.
Myy samanlainenKuvaus

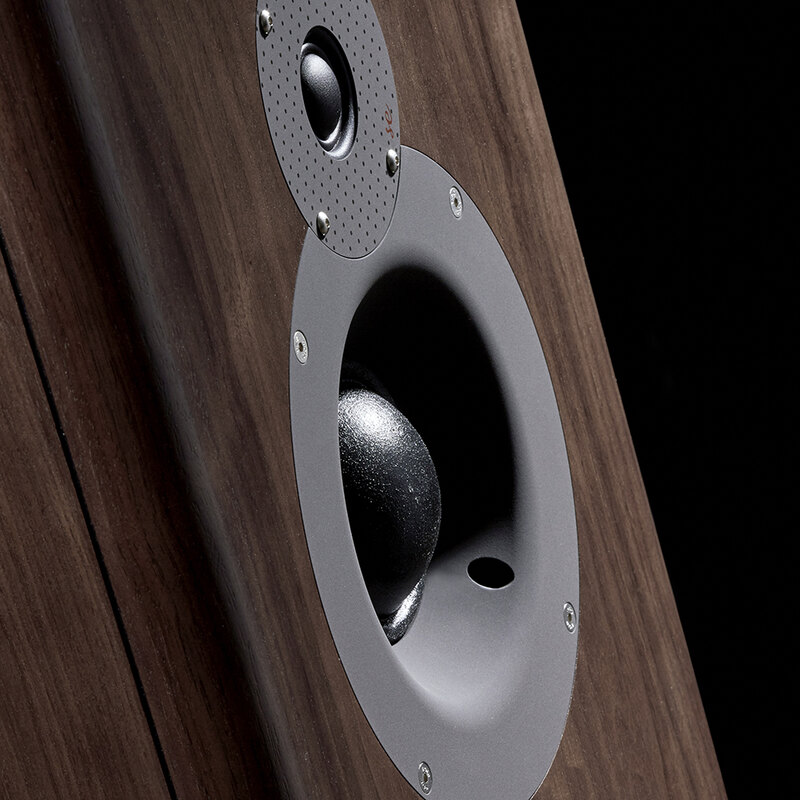

The IB2 SE is a passive three-way floorstanding speaker that comes from PMC's professional studio designs. A 10-inch (250mm) carbon fibre and Nomex piston driver handles bass, a 75mm soft dome covers the mid-range, and a 27mm ferrofluid-cooled Sonolex soft dome handles the treble. Crossover points are 380Hz and 3.8kHz.
Bass is loaded with PMC's Advanced Transmission Line (ATL) design, which has an effective line length of 2.4m (8ft). The maker presents this as a way to get deeper bass from a smaller cabinet than ported or sealed designs. Quoted frequency response is 25Hz to 25kHz, sensitivity is 89dB (1W, 1m) and nominal impedance is 4 ohms. Recommended amplifier power is 15 to 500W.

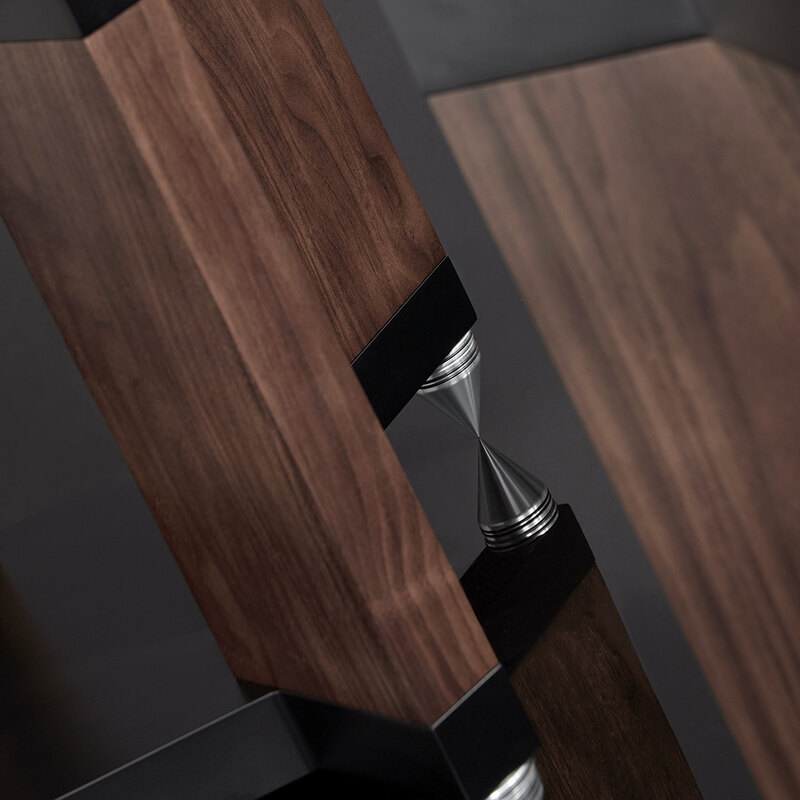

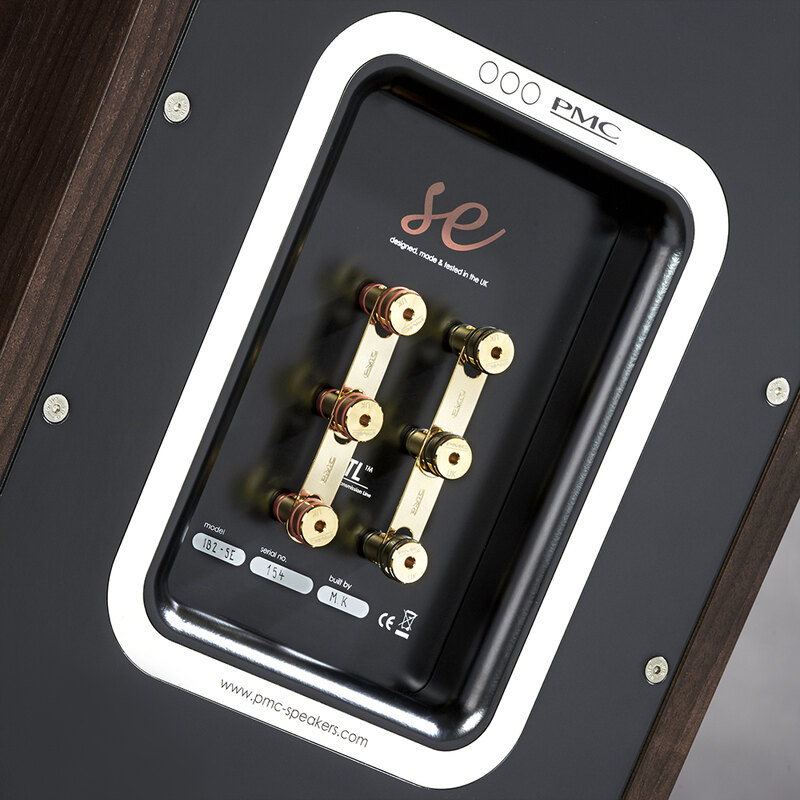

Connection is through three pairs of 4mm sockets, so the speaker can be tri-wired or tri-amplified. A matching IB2-C SE centre channel is available separately. Registering a new purchase within 10 days of buying gives a 20 year warranty, subject to terms. The speaker weighs 49kg and a dedicated stand is listed at 13kg.
Video
Tekniset tiedot
- Merkki
- PMC
- Malli
- IB2 SE
- Luokka
- Hi-Fi ja kodin audio › Kaiuttimet
Audio
- Frequency response
- 25Hz-25kHz
- Sensitivity
- 89dB 1w 1m
- Impedance
- 4 Ohm nominal
- Recommended amp power
- 15 - 500W
- Crossover frequency
- 380Hz - 3.8kHz
- Effective ATL length
- 2.4m 8ft
Drive units
- LF
- PMC 10" 250mm Carbon Fibre & Nomex Piston
- MF
- PMC75 SE - 75mm soft dome
- HF
- 27mm SONOLEX soft dome, Ferrofluid cooled
Connectivity
- Input connectors
- 3 pairs 4mm sockets (tri-amp or tri-wire)
Physical
- Height
- 740mm (29.1")
- Width
- 330mm (13")
- Depth
- 465mm (18")
- Weight
- 49kg (108lbs)
- Stand weight
- 13kg (28.7lbs)
Warranty
- Extended warranty
- 20 years if registered within 10 days of purchase
