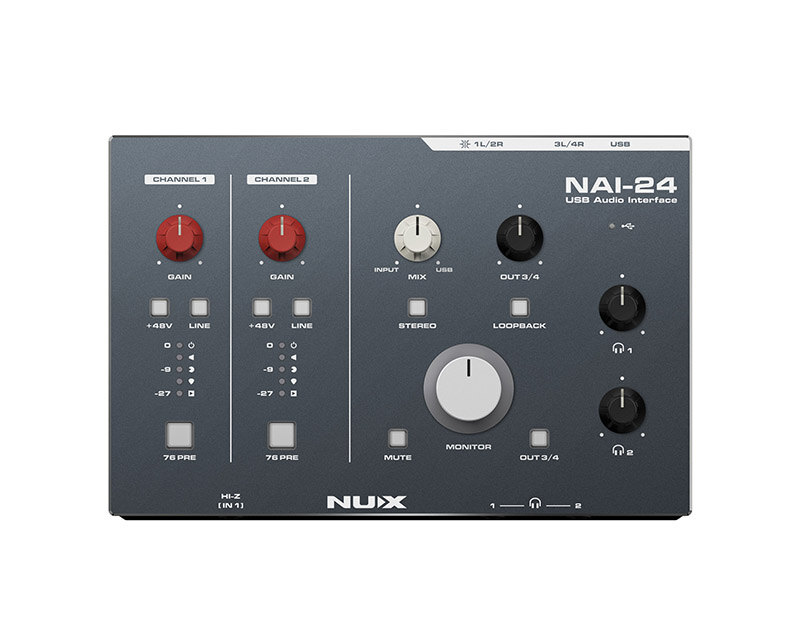

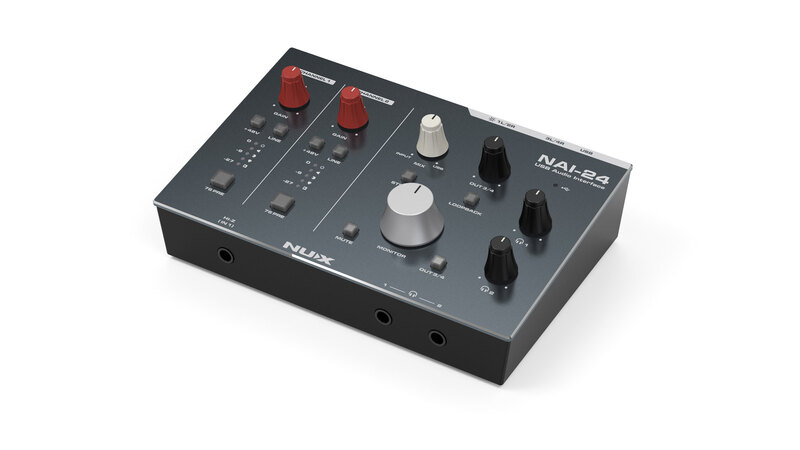

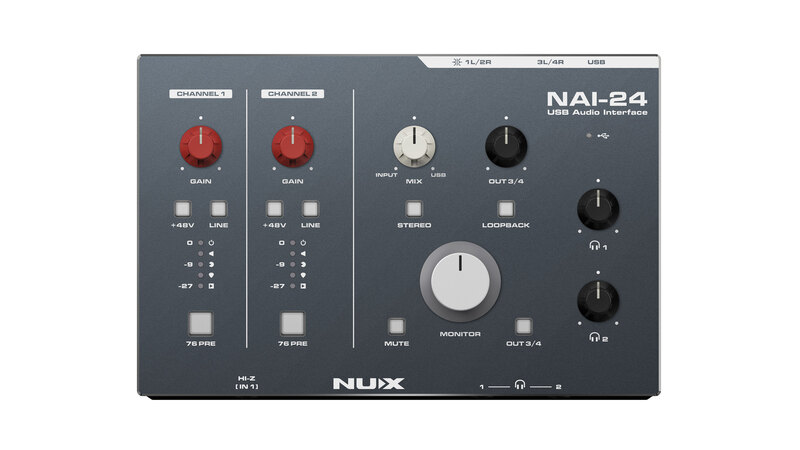

The NAI-24 is a USB-powered desktop interface with two inputs and four outputs. Each input has a discrete Class A transistor mic preamp with a boost mode, plus an analog compressor circuit with three presets: vocal, guitar/bass and live streaming. Conversion uses AKM AD/DA chips, and the main outputs 1L/2R pass through audio transformers that electrically isolate the signal and help avoid ground loops.
Monitoring options include two independent headphone outputs, a soft/hard monitoring mix, one-click stereo switching and one-click loopback. Holding the OUT 3/4 button sends outputs 3/4 to headphone 2. Two output modes are available: A/B mode, which switches between two pairs of active monitors, and recording mode, which lets you monitor the 3/4 feed on the main outputs and connect external effects for re-recording.

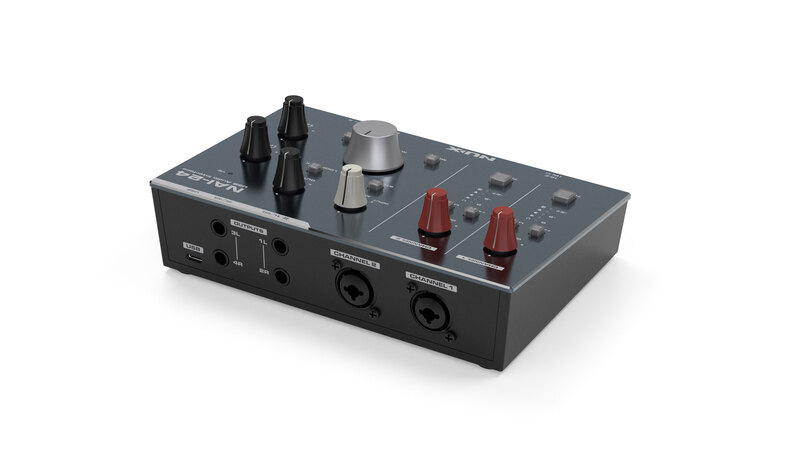

Each channel has independent 48V phantom power and a LINE IN switch, and there is a Hi-Z input for instruments. The unit connects over USB, with XLR and 6.35mm connectors, and Cubase 13 LE is included. A NUX ASIO driver is provided for Windows.
Tekniset tiedot
- Merkki
- NUX
- Malli
- NAI-24
- Luokka
- Studio › Äänikortit
Inputs
- Input channels
- 2
- Mic input gain range
- 5.4-63dB
- Mic input maximum level
- 6dBu (at minimum gain)
- Mic input impedance
- 2.4kΩ
- Line input gain range
- -12.6-45dB
- Line input maximum level
- 26dBu (at minimum gain)
- Line input impedance
- 21kΩ
- Hi-Z nominal input level
- -10dBu
- Hi-Z input impedance
- 1MΩ
Outputs
- Outputs
- 4 (1L/2R, 3L/4R)
- 1L/2R maximum output level
- +12.4dBu (balanced, 0dBFS)
- 1L/2R output impedance
- 580Ω
- 3L/4R maximum output level
- +18.4dBu (balanced, 0dBFS)
- 3L/4R output impedance
- 240Ω
- Headphone power output
- 30mW@32Ω
Audio
- Max sample rate / bit depth
- 32-bit/192kHz
- Mic input dynamic range
- 114dB (A-weighted)
- Mic input EIN
- -126dB (A-weighted)
- Mic input THD+N
- 0.002%@-1dBFS (at minimum gain)
- Mic input frequency response
- 20-20000Hz ± 0.1dB
- Line input THD+N
- 0.003%@-1dBFS (at minimum gain)
- 1L/2R dynamic range
- 112dB (balanced, 600Ω, A-weighted)
- 1L/2R THD+N
- 0.0015%@-1dBFS
- 3L/4R THD+N
- 0.001%@-1dBFS
- Headphone dynamic range
- 104dB (A-weighted)
- Latency
- 3.17ms at 192kHz, 32 sample buffer
Power
- Power
- USB powered
- Phantom power
- 48V, independent per channel
Physical
- Dimensions
- 194(L)x128(W)x67(H)mm
- Weight
- 722g
Software
- Included software
- Cubase 13 LE
- Windows driver
- NUX ASIO Driver V5.72.0 (Win10 and above)
