Kuvaus

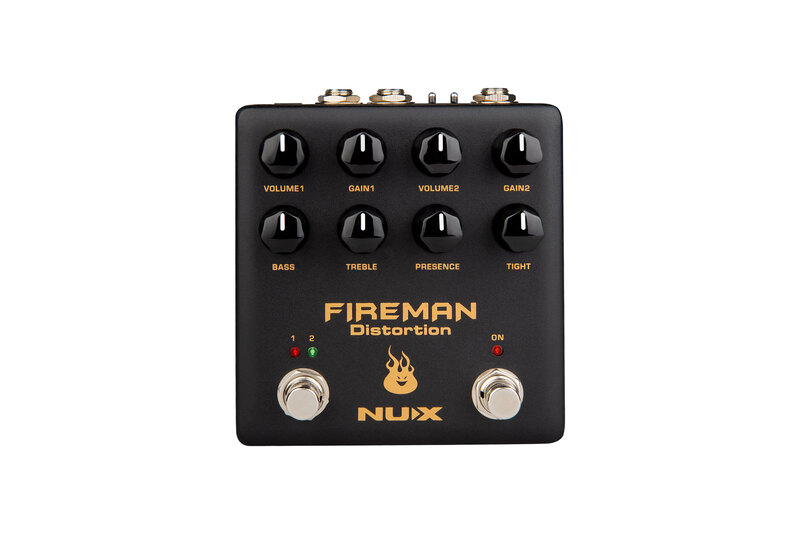

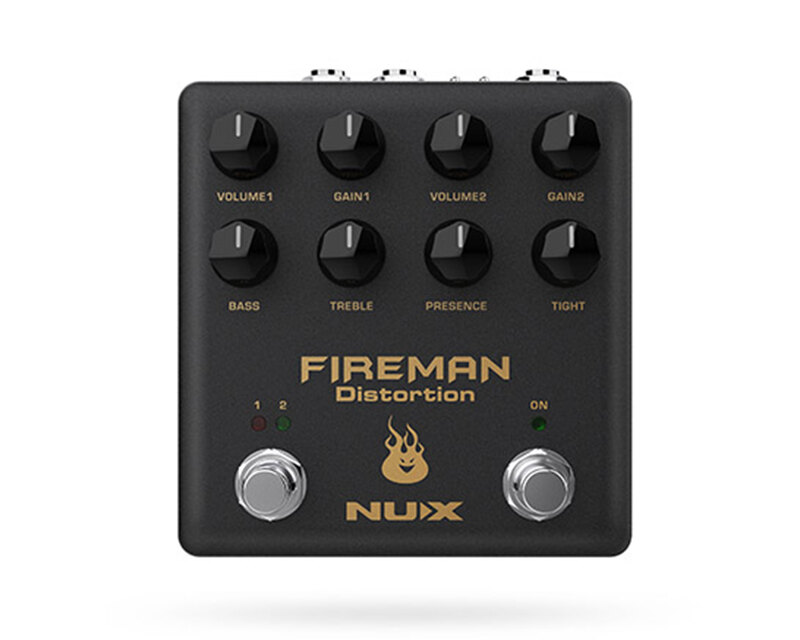

Fireman is a two-channel distortion pedal built around a modern brown-sound voicing. Each channel has its own Gain and Volume knob, so a rhythm level and a solo level can be set independently and switched with the 1/2 footswitch. A separate ON footswitch engages or bypasses the effect.
Tone shaping is shared between the channels through Bass, Treble, Presence and Tight controls. Tight reduces low-frequency content when turned down, which keeps heavily driven riffs focused. A toggle switch selects true bypass or buffered bypass, and a second toggle runs the circuit at 9V or at 18V internally, which gives a wider dynamic range.
The pedal has a mono input and output on the side jacks. An EXT. SW jack accepts a TRS dual footswitch that takes over the functions of the two on-board footswitches. Power comes from a 9V DC negative-tip adapter, and the manual is available in English and Japanese.
Tekniset tiedot
- Merkki
- NUX
- Malli
- Fireman
- Luokka
- Efektit ja pedaalit
Controls
- Tone controls
- Bass, Treble, Presence, Tight
- Channel 1 controls
- Volume 1, Gain 1
- Channel 2 controls
- Volume 2, Gain 2
- Footswitches
- 1/2 channel select, ON
- Toggle switches
- BF/TB bypass, 18V/9V
Inputs
- Input
- Guitar input
- Input impedance
- 2.2MΩ
- External switch input
- EXT. SW (TRS dual footswitch)
Outputs
- Output
- To amplifier
- Output impedance
- 1MΩ
Audio
- Frequency response
- 20Hz~20kHz ±1dB
- Bypass modes
- True-bypass / Buffer-bypass
- Channels
- 2
Power
- Power supply
- 9V DC, Negative Tip (ACD-006A)
- Current requirement
- 100mA adaptor
- Internal operating voltage
- 9V or 18V (switchable)
Physical
- Dimensions
- 105(L)×115(W)×58(H)mm
- Weight
- 460g
Software
- Manuals
- English and Japanese
